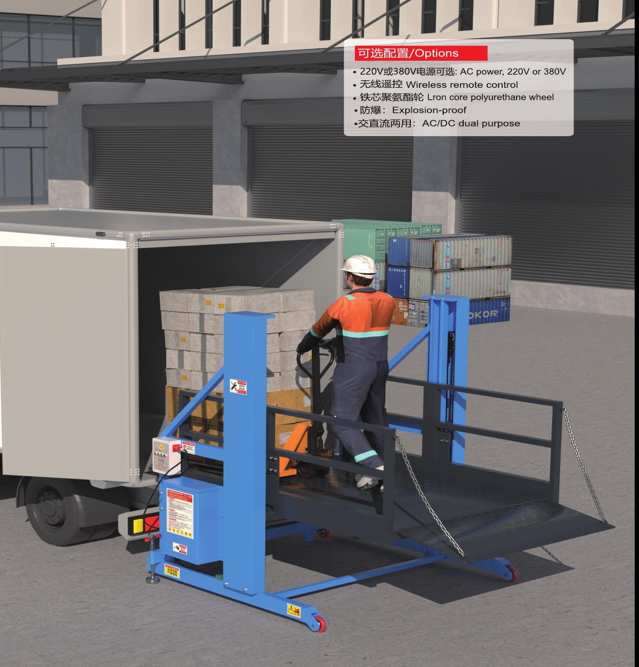

The mobile dock lift is a widely used loading and unloading lifting device. It adopts a hydraulic lifting structure of guard-rail type for very stable lifting. Unlike a fixed scissor lift it needs no pit — the mobile design allows free repositioning. Wireless remote control enables single-person operation, suitable for loading and unloading of almost all vehicle types.
| Model | Max Travel Ht. | Capacity | Platform (A×B) | Overall (L×W×H) | Power |
|---|---|---|---|---|---|
| XHPT-2T | 1.7 m | 2 T | 2.0 × 1.6 m | 2.3 × 2.26 × 2.5 m | 2.2 kW |
| XHPT-2T | 1.7 m | 2 T | 2.0 × 2.0 m | 2.3 × 2.66 × 2.5 m | 3.0 kW |
Model
XHPT-2T
Capacity
2 T
Max Travel Ht.
1.7 m
Voltage
380V / 220V
Platform Option 1
2.0 × 1.6 m — 2.2 kW
Platform Option 2
2.0 × 2.0 m — 3.0 kW
Optional Configurations
.png)

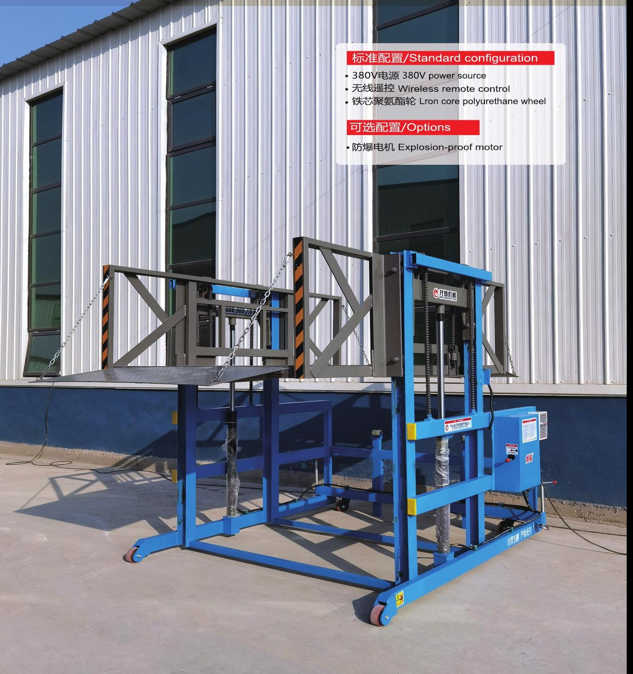

The 3-ton mobile dock lift series uses 4 national-standard H-steel rails and 1244 plate chains, giving stronger load-bearing capacity. Its unique structural design allows customization of larger platform sizes. The maintenance-free polymer slider ensures smoother, more reliable lifting.
| Model | Max Travel Ht. | Capacity | Platform (A×B) | Overall (L×W×H) | Power |
|---|---|---|---|---|---|
| XHPT-3T | 1.7 m | 3 T | 2.0 × 1.6 m | 2.3 × 2.48 × 2.5 m | 4.0 kW |
| XHPT-3T | 1.7 m | 3 T | 2.0 × 2.0 m | 2.3 × 2.88 × 2.5 m | 4.0 kW |
| XHPT-3T | 1.7 m | 3 T | 2.6 × 1.6 m | 2.9 × 2.48 × 2.5 m | 4.0 kW |
| XHPT-3T | 1.7 m | 3 T | 2.6 × 2.0 m | 2.9 × 2.88 × 2.5 m | 4.0 kW |
Model
XHPT-3T
Capacity
3 T
Max Travel Ht.
1.7 m
Power
4.0 kW
Platform 2.0×1.6 m
Overall: 2.3×2.48×2.5 m
Platform 2.0×2.0 m
Overall: 2.3×2.88×2.5 m
Platform 2.6×1.6 m
Overall: 2.9×2.48×2.5 m
Platform 2.6×2.0 m
Overall: 2.9×2.88×2.5 m
Optional Configurations

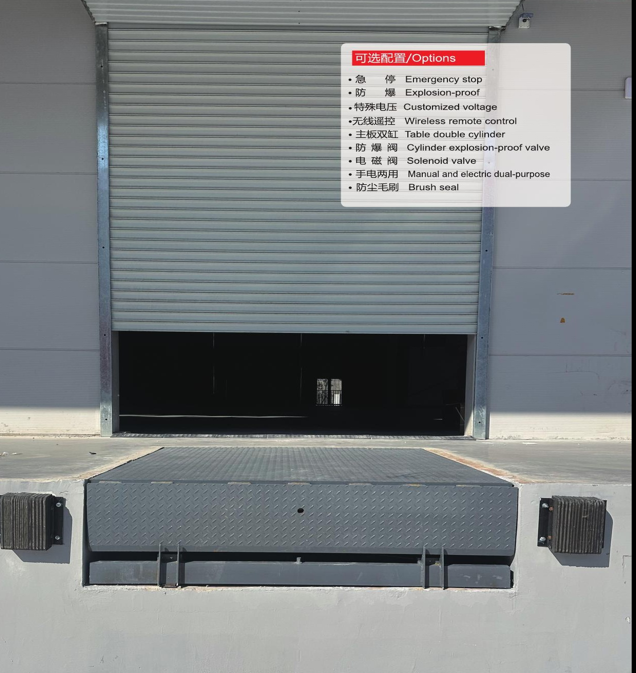

The dock leveller is a special auxiliary equipment for quick goods loading and unloading. By adjusting height it creates a bridge between vehicle and warehouse platform, allowing forklifts to drive directly inside the truck for continuous cargo handling. Suitable for logistics companies, cold stores and warehouses.
| Model | Overall Size (L×W×H) | Upward | Downward | Power | Foundation (L×W×H) |
|---|---|---|---|---|---|
| DCQG-8T | 2000×2000×600 mm | 400 mm | 300 mm | 1.1 kW | 2000×2030×610 mm |
| DCQG-8T | 2500×2000×600 mm | 400 mm | 300 mm | 1.1 kW | 2500×2030×610 mm |
| DCQG-8T | 3000×2000×600 mm | 400 mm | 300 mm | 1.1 kW | 3000×2030×610 mm |
| DCQG-10T | 2000×2000×600 mm | 400 mm | 300 mm | 1.1 kW | 2000×2030×610 mm |
| DCQG-10T | 2500×2000×600 mm | 400 mm | 300 mm | 1.1 kW | 2500×2030×610 mm |
| DCQG-10T | 3000×2000×600 mm | 400 mm | 300 mm | 1.1 kW | 3000×2030×610 mm |
Upward Travel
400 mm
Downward Travel
300 mm
Power
1.1 kW
Models
DCQG-8T / DCQG-10T
DCQG-8T Sizes (L mm)
2000 / 2500 / 3000 × 2000 × 600
DCQG-10T Sizes (L mm)
2000 / 2500 / 3000 × 2000 × 600
Optional Configurations

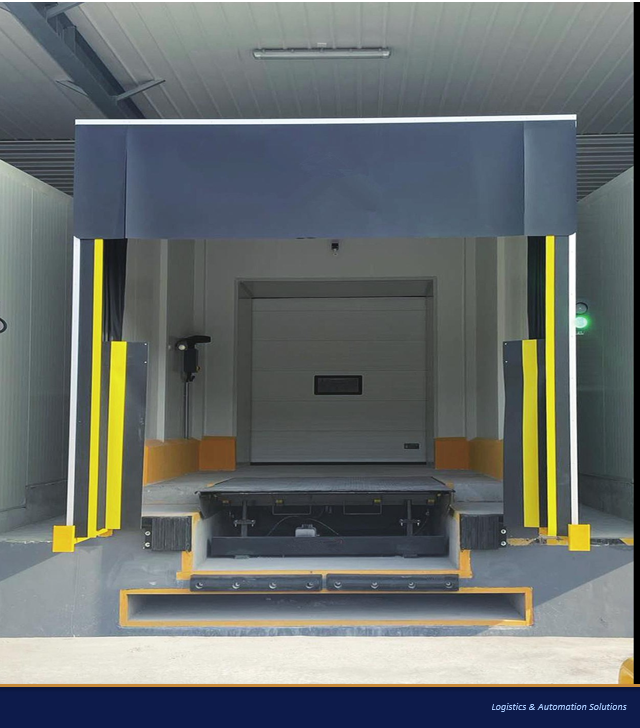

Widely used in cold-storage logistics loading and unloading. Installed on the inner side of the cold storage sliding door — when the door closes it drops to the pit bottom, cutting off indoor/outdoor air convection to achieve full sealing and reduce energy loss. The 1,000 mm telescopic lip ensures effective overlap with the truck bed.
| Model | Overall Size (L×W×H) | Upward | Downward | Power | Lip Length (A) |
|---|---|---|---|---|---|
| DCQS-10T | 2000×2000×600 mm | 400 mm | 300 mm | 1.5 kW | 800 mm |
| DCQS-10T | 2500×2000×600 mm | 400 mm | 300 mm | 1.5 kW | 1000 mm |
Model
DCQS-10T
Power
1.5 kW
Upward Travel
400 mm
Downward Travel
300 mm
Size Option 1 (L×W×H)
2000×2000×600 mm
Lip Length Option 1
800 mm
Size Option 2 (L×W×H)
2500×2000×600 mm
Lip Length Option 2
1000 mm

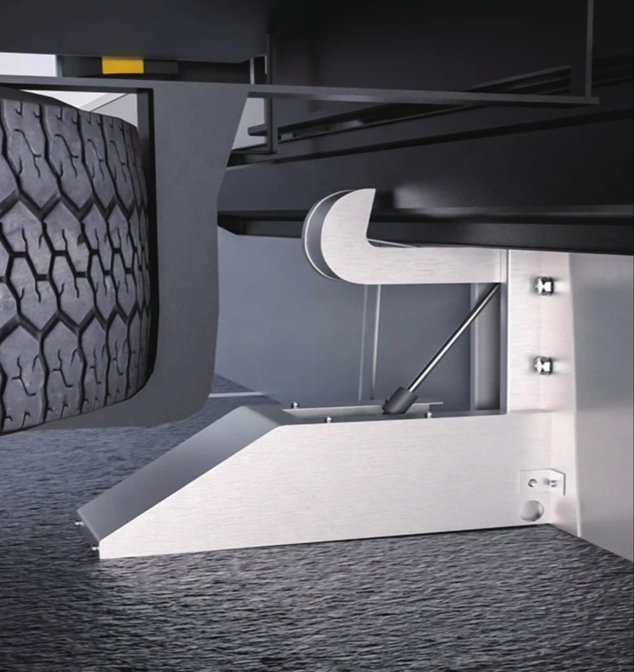

The vehicle restraint is installed at the front of the dock to lock the vehicle and prevent the dock leveller from detaching from the truck during use, avoiding danger. Equipped with internal and external traffic light systems, it provides visual confirmation of restricted movement status in real time.
Overall Size
750 × 420 × 680 mm
Travel Height
200–600 mm (range 300–720)
Weight
108 kg
Surface Treatment
Galvanizing
Power
0.37 kW
Voltage
AC 380V / 50Hz / 3-Phase

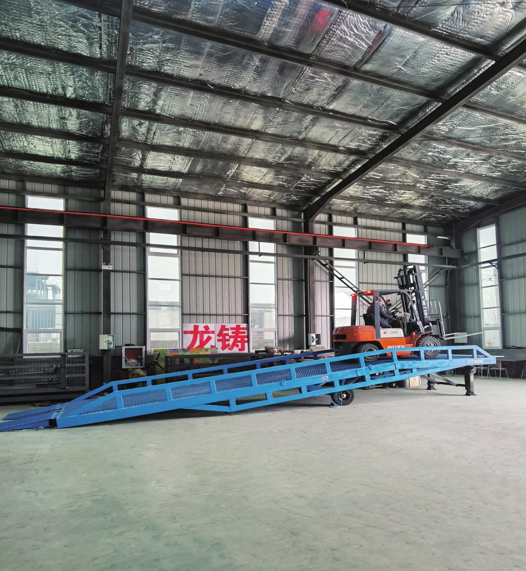

The mobile yard ramp works with forklifts and allows height adjustment to match the vehicle floor. Forklifts can drive directly into the vehicle for continuous cargo handling with just one operator — greatly improving factory working efficiency, reducing labour numbers and achieving more economic benefits.
| A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | Angle K |
|---|---|---|---|---|---|---|---|---|
| 750 | 7000 | 3000 | 400 | 2100 | 2000 | 1100 | 1700 | 14° |
Ramp Length (B)
7000 mm
Ramp Width (F)
2000 mm
Platform Length (C)
3000 mm
Min Height (D)
400 mm
Max Height (H)
1700 mm
Ramp Angle (K)
14°
Overall Length (E)
2100 mm
Width (A)
750 mm
The scissor lift table maximum design capacity is up to 170 tons. Table size, lifting travel and capacity are all customizable per user requirements. Control options include single ground control, platform-ground control, inching/linkage control, or wireless remote. Stable structure, low failure rate, safe and efficient — widely used in production lines, warehouses and logistics.
Max Load Capacity
Up to 170 Tons (customizable)
Platform Size
Fully customizable per requirements
Lifting Travel
Customizable per requirements
Control Modes
Ground / Platform-Ground / Inching / Linkage / Wireless Remote
Applications
Production Lines · Warehouses · Cold Stores · Logistics

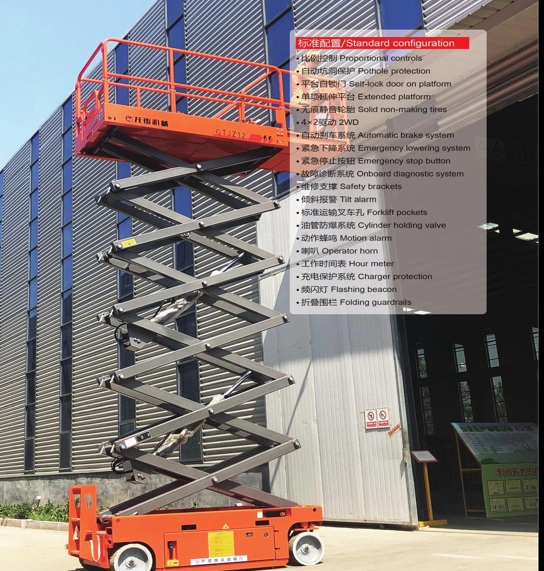

Versatile for both indoor and outdoor aerial work — repairs, maintenance, cleaning, installation. One person controls walking, turning and lifting via the platform handle. Compared with traditional scaffolding it is safer, more efficient and reduces the number of workers and labour intensity.
| Model | Max Work Ht | Max Plat. Ht | Platform L×W | Load (kg) | Machine Wt (kg) |
|---|---|---|---|---|---|
| GTJZ-04X | 6.0 m | 4.0 m | 1.30×0.68 m | 230 | 940 |
| GTJZ-045 | 6.5 m | 4.5 m | 1.39×0.74 m | 230 | 1150 |
| GTJZ-06X | 7.8 m | 5.8 m | 1.67×0.74 m | 230 | 1350 |
| GTJZ-06Z | 8.0 m | 6.0 m | 2.27×0.85 m | 320 | 1990 |
| GTJZ06 | 8.0 m | 6.0 m | 2.27×1.13 m | 230 | 2200 |
| GTJZ-08Z | 10.0 m | 8.0 m | 2.27×0.85 m | 450 | 2090 |
| GTJZ08 | 10.0 m | 8.0 m | 2.27×1.13 m | 320 | 2400 |
| GTJZ10 | 10.0 m | 8.0 m | 2.27×1.13 m | 320 | 2600 |
| GTJZ12 | 13.8 m | 11.8 m | 2.27×1.13 m | 230 | 2900 |
| GTJZ14 | 15.8 m | 13.8 m | 2.64×1.13 m | 320 | 3600 |
| GTJZ12LD | 13.8 m | 11.8 m | 2.27×1.10 m | 320 | 3680 |
GTJZ-04X
6.0 m · 230 kg · 940 kg wt
GTJZ-045
6.5 m · 230 kg · 1150 kg wt
GTJZ-06X
7.8 m · 230 kg · 1350 kg wt
GTJZ-06Z
8.0 m · 320 kg · 1990 kg wt
GTJZ-08Z
10.0 m · 450 kg · 2090 kg wt
GTJZ08
10.0 m · 320 kg · 2400 kg wt
GTJZ12
13.8 m · 230 kg · 2900 kg wt
GTJZ14
15.8 m · 320 kg · 3600 kg wt
GTJZ12LD
13.8 m · 320 kg · 3680 kg wt
GTJZ10
10.0 m · 320 kg · 2600 kg wt
GTJZ06
8.0 m · 230 kg · 2200 kg wt
Note
Max Work Ht shown · Load capacity · Machine weight
Optional Configurations
